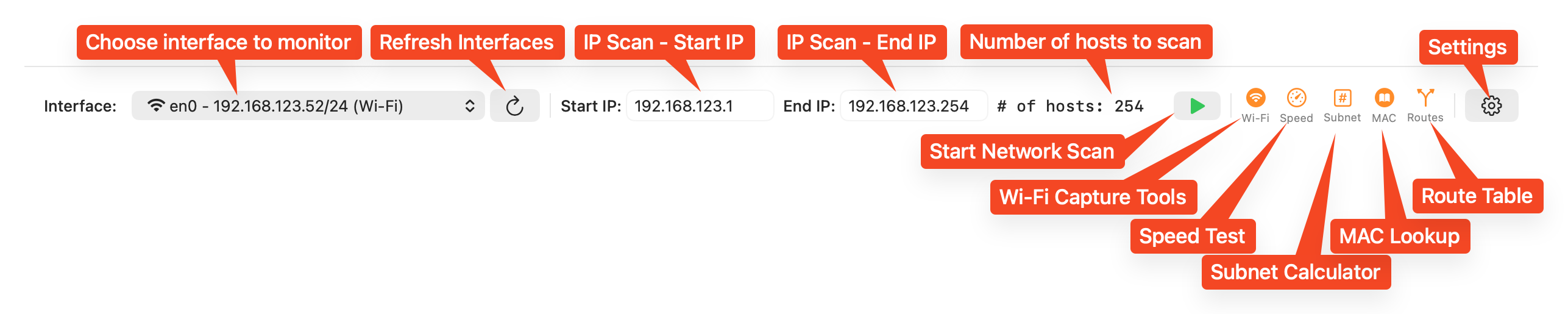

Toolbar

The toolbar (command bar) provides quick access to network interface selection, scan controls, and all major PingStalker tools.

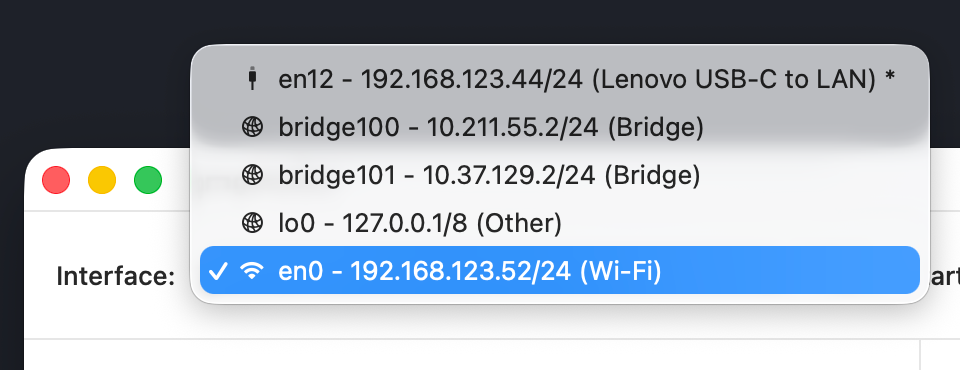

Interface Selector

The leftmost section of the toolbar controls which network interface you're monitoring.

Select from all available network interfaces on your Mac:

Wi-Fi interfaces (e.g., Wi-Fi, Wi-Fi 2)
Ethernet interfaces (e.g., Ethernet, USB 10/100/1000 LAN)
Virtual interfaces (e.g., bridge, utun, awdl)
Other interfaces (Thunderbolt Bridge, iPhone USB, etc.)

Display Format: Interfaces show their display name (e.g., "Wi-Fi") with the interface identifier in parentheses (e.g., "en0")

Effect of Selection: - Updates the Interface Details pane - Changes which network the Network Scan will scan - Updates the Ping Monitor default hosts (gateway, local IP) - Affects which interface the Network Logs monitor

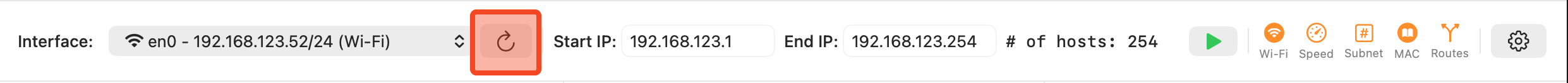

Refresh Button

Click the circular arrow button to refresh the interface list. This is useful when:

Connecting/disconnecting network cables
Toggling Wi-Fi on/off
Connecting to VPNs
Adding USB network adapters
After system network configuration changes

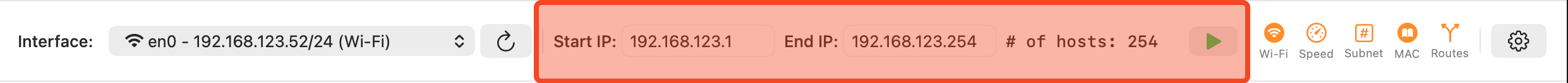

Scan Controls

The center section controls network scanning operations.

IP Range Start

Enter the starting IP address for your network scan. This field:

Auto-populates based on the selected interface's network
Can be manually edited
Validates IP address format
Supports any valid IPv4 address

Example: For network 192.168.1.0/24, typically set to 192.168.1.1

IP Range End

Enter the ending IP address for your network scan. This field:

Auto-populates based on the selected interface's network
Can be manually edited
Validates IP address format
Must be greater than or equal to the start IP

Example: For network 192.168.1.0/24, typically set to 192.168.1.254

Host Count Display

Shows the number of IP addresses that will be scanned based on your start and end range.

Example: Range 192.168.1.1 to 192.168.1.254 = 254 hosts

Note: Larger ranges take longer to scan. The 11-phase scan process checks each IP for: - ARP responses - Ping responses - Open ports - DNS names - Device identification

Scan Button (Start/Stop)

The green play button (▶) initiates a network scan.

While Scanning: - Button changes to show a spinner/progress indicator - Scan results appear in real-time in the results table - Status updates appear in the footer - Button becomes disabled during scan phases

See: Network Scan for complete scanning documentation

Keyboard Shortcut: ⌘S

Alternative Access: Menu bar → Tools → Scan

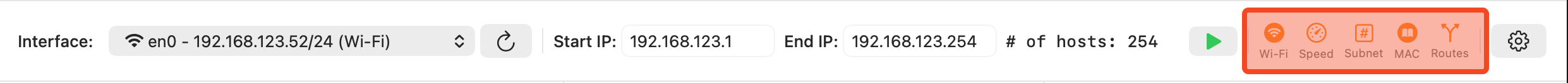

Tool Buttons

The right section of the toolbar provides one-click access to all utility windows.

Wi-Fi Sniffing Button

Opens the Wi-Fi Capture window for packet sniffing in monitor mode.

Keyboard Shortcut: ⌘F

See: Wi-Fi Capture

Alternative Access: Menu bar → Tools → Wi-Fi Sniffing

Speed Test Button

Opens the Speed Test window to test your internet connection using Cloudflare's CDN.

Keyboard Shortcut: ⌘R

See: Speed Test

Alternative Access: Menu bar → Tools → Speed Test

Subnet Calculator Button

Opens the Subnet Calculator for IP address planning and CIDR calculations.

Keyboard Shortcut: ⌘T

See: Subnet Calculator

Alternative Access: Menu bar → Tools → Subnet Calculator

MAC Address Lookup Button

Opens the MAC Address Lookup tool to identify device vendors from OUI (Organizationally Unique Identifier).

Keyboard Shortcut: ⌘M

See: MAC Address Lookup

Alternative Access: Menu bar → Tools → MAC Address Lookup

Routing Table Button

Opens the Routing Table viewer to display IPv4 routes and network service order.

Keyboard Shortcut: ⌘Y

See: Routing Table

Alternative Access: Menu bar → Tools → Routing Table

Settings Button

Opens the Settings window to configure PingStalker preferences.

Keyboard Shortcut: ⌘O

See: Settings

Alternative Access: Menu bar → PingStalker → Settings

Usage Tips

Quick Interface Switching

When troubleshooting multi-interface issues:

Use the interface dropdown to quickly switch between interfaces
Observe how the Interface Details pane updates
Run scans on different networks
Compare routing tables between interfaces

Pre-Scan Configuration

Before starting a scan:

Verify the correct interface is selected
Check the IP range matches your network
Note the host count (larger scans take longer)
Clear previous scan results if desired (footer → Clear Results)

Efficient Workflow

Most common workflow:

Select your active interface (e.g., Wi-Fi)
Verify IP range is correct (usually auto-populated)
Click Scan button to discover devices
While scan runs, monitor the Ping Monitor and Network Logs
Use tool buttons to launch utilities as needed

Currently, the toolbar layout is fixed, but all tools remain accessible via:

Toolbar buttons (visual)
Menu bar items (organized)
Keyboard shortcuts (fastest)

Now that you understand the toolbar controls, explore the Interface Details pane to see what information PingStalker displays about your network interfaces.
